    10 Head Multihead Weighing Machine For Cereal 5kg Filling Machine

    Ask Lasest Price
    Brand Name : ConFil
    Model Number : FCC-210VV-Tank
    Certification : CE
    Price : USD6000 ~ 12000 per set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 5 ~ 15 working days
    • Product Details
    • Company Profile

    10 Head Multihead Weighing Machine For Cereal 5kg Filling Machine

    Multihead Weighing Machine Multihead Weigher for Cereal 5kg Filling Machine


    Introduction:

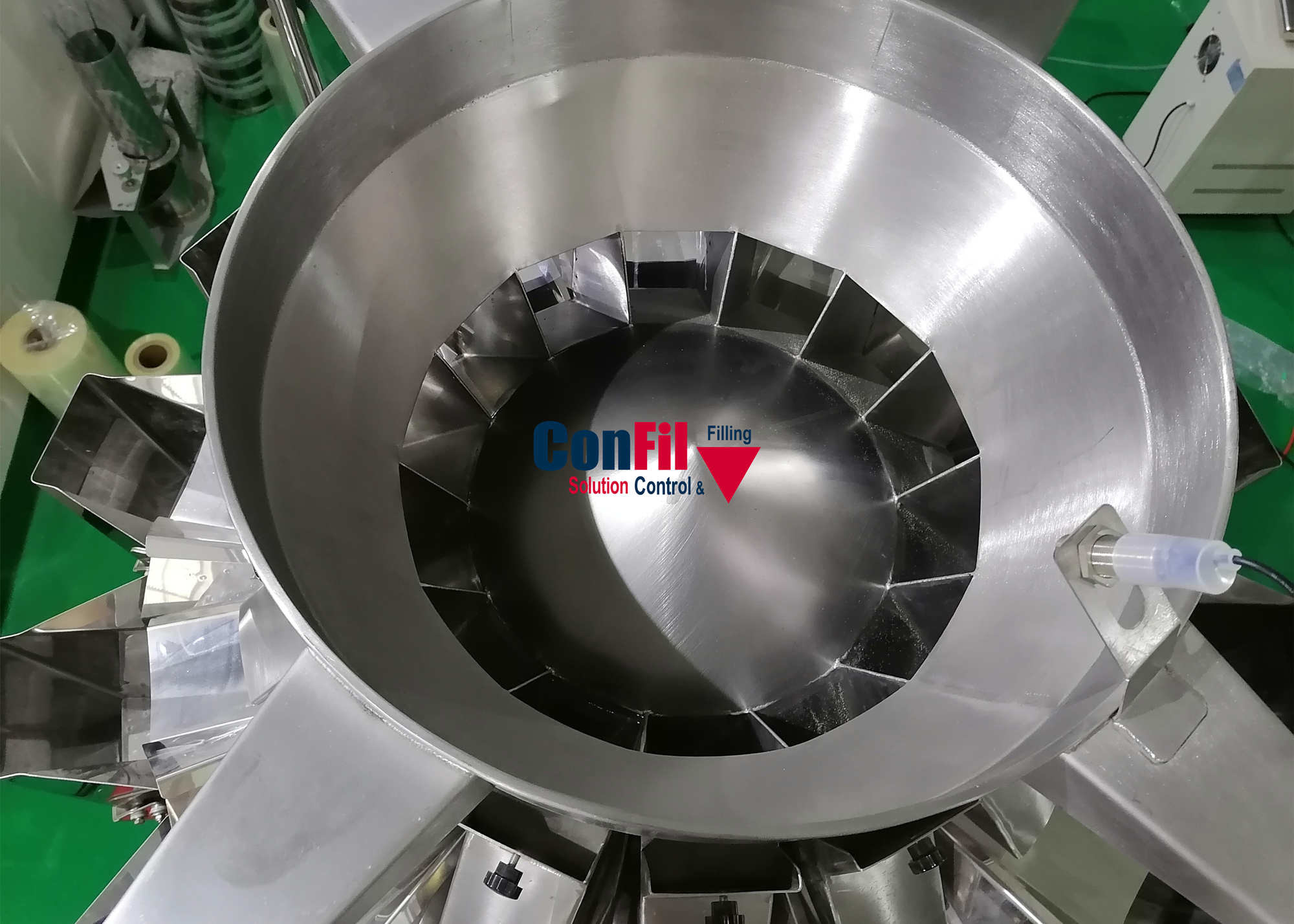

    Original designed for cereal, such as rice, corn and wheat, then further developed for any free-flow granular while the target weight is over 1kg and higher output capacity is required. Without the central vibrating distributor, instead by a central tank which can feed products more efficient onto radial feeder pans. Special timing hopper is adapted in this model.


    1.Classic series is designed for general weighing purpose.
    2.The first set of C series was built in the year 2011, with simple design and durable performance.
    3.Designed for running in indoor environment that relative humidity is under 80% and temperature is between +1 ~ +50℃.
    4.Cost effective price, greater ROI.

    Standard features:

    1.Vibration feeding or screw feeding into hoppers
    2.Double-beam strain gauge load cell, C3
    3.0.1 gram minimum graduation
    4.Products feeding level is controlled by optical sensor
    5.Product contacting surfaces are made in sanitary stainless steel
    6.Hoppers are driven by stepper motor
    7.Stepper motors are casing in aluminum casting with Teflon coating
    8.10.1inch color LCD touch screen
    9.CAN bus electronic structure
    10.Air consumption depends on configuration

    Special features:

    1. Rigid design, machine weight is approx. half ton
    2. More efficient feeding than using main feeder, especially when the target weight is over 800gram
    3. Wing type timing hopper design allows much clearer sealing window for packaging machine

    Model

    Numbers

    of

    weighing

    head

    Weighing

    Hopper

    volume

    (Liter)

    Recommend

    weighing

    Range

    (gram)


    Max.

    Weighing

    Speed

    (cycles

    per minute)

    Esteemed accuracy

    (gram)

    Food contacting surface

    Numbers

    of

    discharging

    point

    Ingress

    protection

    Machine

    weight

    (approx. Kg)

    FCC-210V-2D tank / 210V-3D tank101.6 / 2.5 / 3.012 ~ 100060+ 1.0 / + 1.5Polished1IP63370
    FCC-214V-2D tank / 214V-3D tank141.6 / 2.5 / 3.012 ~ 5000100+ 1.0Polished1IP63500
